LineVu reveals contamination in high pressure natural gas systems that until now has been undetected. Despite commercial and legal contracts requiring that no liquids or solids should enter a gas network, it is common to find that liquid contamination is the cause of damage to power stations and other plant all over the world.
By monitoring the efficiency of gas/liquid separation systems, the patented LineVu systems provides game-changing safety and financial benefits.

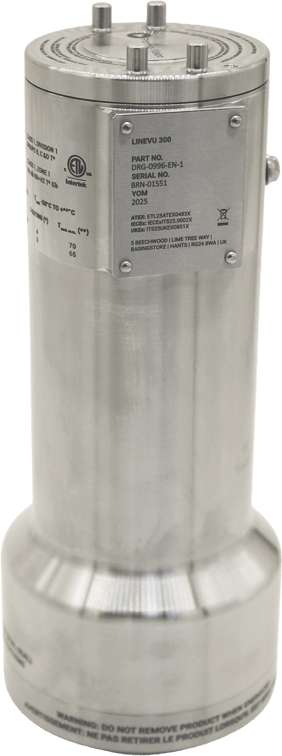

Machine vision camera, monitoring gas flow 24/7.
Certified for hazardous areas, optional flange adapters available to enable quick installation to various flanged tapping points.
All data is stored on-site, with an optional cloud based access.
Using the latest in machine learning, the gas process is monitored continuously for liquid carry-over events.
We believe that process supervisors and operations teams should have the best information possible in order to make the best operational decisions.
Operators are given immediate notification of pipeline contamination events.
Live video feed of the pipeline activities can be provided to the control room, to help close the loop on gas quality control.
Monitoring natural gas contamination events as a process control parameter, the Camera Can is cable linked to a safe area controller, where image processing provides a live video stream and local alarm. This system may provide video and data to the site local network.
Multiple Camera Cans may be connected to the site controller, installed in a safe area.
Starlink
Mobile Data
Offline
LineVu mobile is used for temporary installations for surveys and de-bottlenecking projects. It combines the previous two versions.
The Camera Can is cable linked to a Pelicase-mounted controller and uplink system giving the user a choice to store locally or live stream to store video and data on a remote server.
Starlink
Mobile Data
Offline
|
Physical
|
Dimensions
|
Cylinder: Ø331 mm x 126 mm (H)
|
|---|---|
|
Weight
|
15kg (33lbs)
|
|
Material (wetted parts)
|
Stainless Steel 316L (DIN 1.4404), NACE MR-01-75 / ISO 15156 Optional: Duplex Stainless Steel (DIN 1.4462) or Hastelloy® C276 (DIN 2.4819) |
|
Process Connection
|
1-11.5 NPT (ASME B1.20.1)
|
|
Ambient Temperature
|
-10°C to +30°C (standard) -40°C to +50°C (available upon request) |
|
Pressure Rating
|
104.4 BarG (1,500 psiG)
|
|
Ingress Protection
|
IP66/NEMA 4X
|
|
Electrical
|
|
|
Power
|
PoE+ (IEEE 802.3at) via GigE port, max 30 W
|
|
Data I/O Interface
|
GigE (Ethernet)
|
|
Cable
|
Minimum Cat5e (recommended S/FTP shielded Ethernet)
|
|
Max Cable Length
|
100m (328ft)
|
|
Over 100 m
|
Use media converter or extender accessories
|
|
Accessory Options
|
Safe Area and Hazardous Area classifications
|
|
Gland Entry
|
M24
|
|
Certification
|
|
|
ATEX
|
Zone 1 – II 2 G IP66 Ex d IIB+H2 T4
|
|
ETL (UL/CSA)
|
Class I, Division 1 Groups B, C&D T4
|
|
IECEx
|
Zone 1 – II 2 G IP66 Ex d IIB+H2 T4
|
|
Camera Specification
|
|
|
Sensor
|
Sony IMX273 1/2.9″ Progressive Scan CMOS, Color
|
|
Resolution
|
1.6 MP (1440 × 1080 pixels)
|
|
Pixel Size
|
3.45 μm × 3.45 μm
|
|
Sensor Format
|
4.97 mm × 3.73 mm (1/2.9″)
|
|
Shutter Type
|
Global Shutter
|
|
Frame Rate
|
Up to 77 fps (max)
|
|
Pixel Depth
|
12 bit
|
|
Exposure Time
|
30 μs to 10 seconds
|
|
Lens
|
50mm focal length, F1.68 fixed lens with variable focus liquid lens
|
|
Illumination
|
Multiple high powered LEDs with individual optical lenses
|
|
Window
|
Sapphire
|
|
Image Signal Processing
|
Region of Interest (ROI), Color Correction Matrix (CCM), Binning
|
